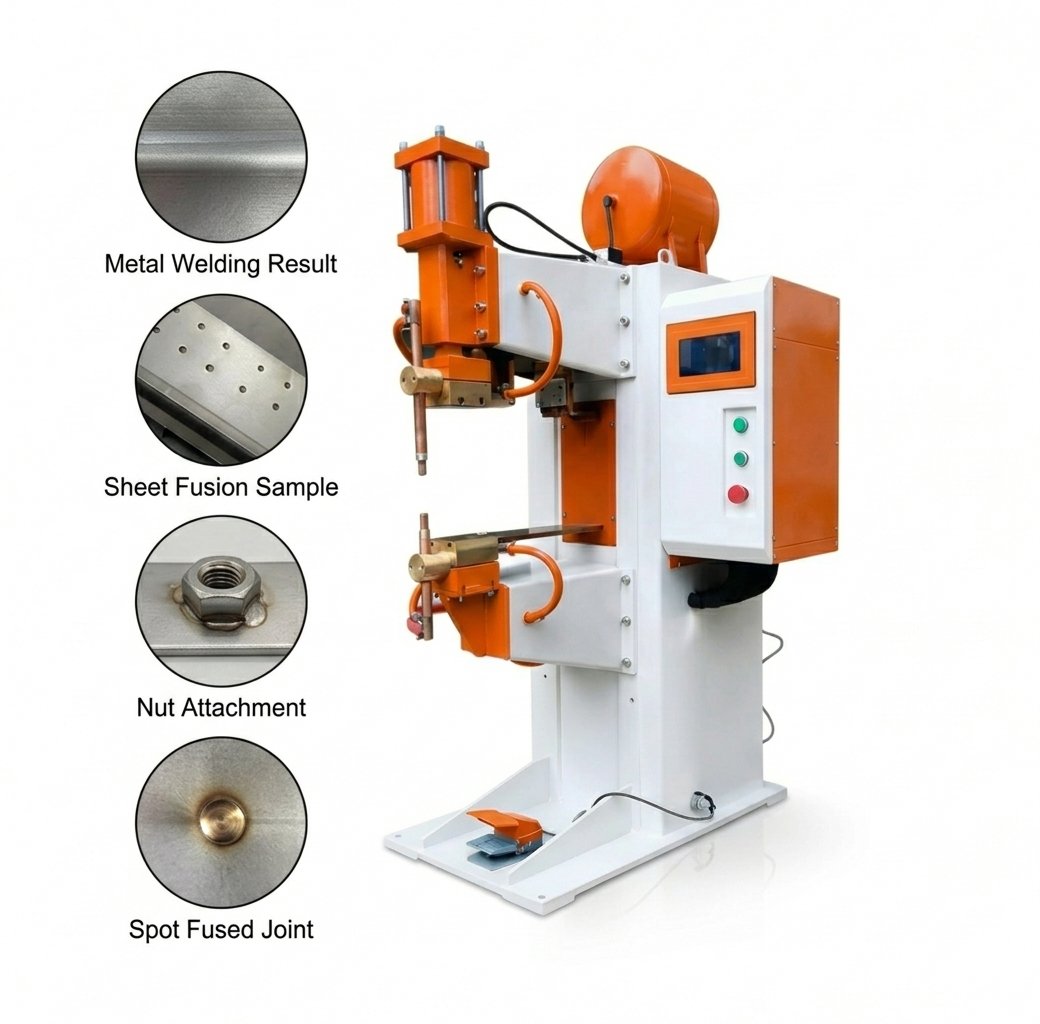

IDW400 SP_Machine
Engineered for superior strength and clean, high-precision results across a variety of industrial applications. Equipped with an intuitive digital control panel and ergonomic foot pedal operation for maximum control and efficiency.
Key Features:
- Water Cooled Transformer, Bits and Thyristor Module.
- All Electrical Control and single cycle automatic operation.
- Low cost and high stability up to maximum temperature rise.
- Precise electrodes pressure control ensures Consistent quality.
Technical Specifications
| Specification | Value |
|---|---|
| Line Voltage | 380/440 Vac 3-Phase |
| Line Frequency | 50 Hz |
| Power Rating of Machine | 90 KVA |
| Transformer Input Freq | 1 kHz |
| Duty Cycle | 50 % |
| Output Voltage | 9V |
| Max Welding Current | 20,000 Amp |
| Throat Depth | 450 mm |
| Stroke Length of Electrode | 100 mm |
| Distance between Electrodes | 200 mm |
| Maximum Pneumatic Line Pressure | 5 Bar |
| Cooling Water Consumption per Minute | 10 Litter |
| Proximate Height of the Machine | 1.6 M |
| Weight of the Machine | 800 Kg |
| Maximum Floor Space Required (L x W) | 1.5M × 2 M |
| Body Thickness | 4 mm |
